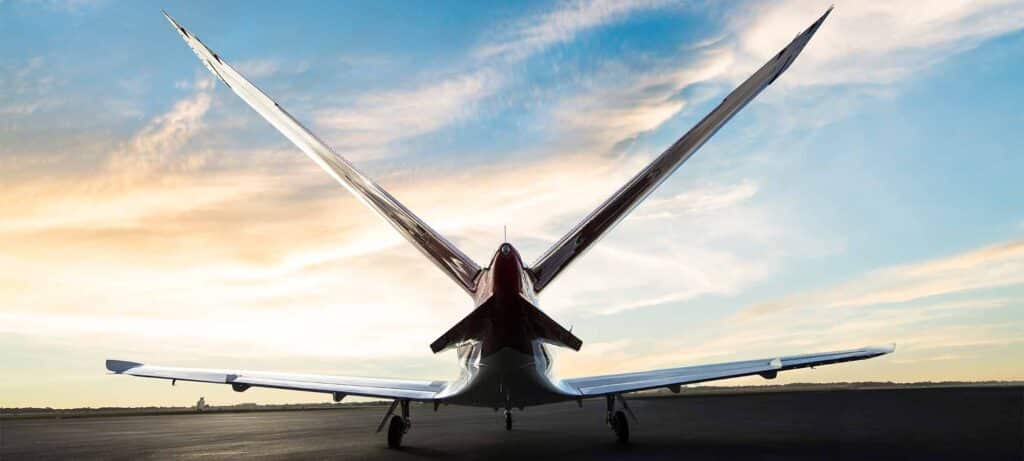

Cirrus Vision SF50
Designed for short-distance flights, the Cirrus Vision SF50 offers maximum speed, efficiency and privacy.
3 PAXPassengers
approx.
approx.
1.24 mCabin Height
approx.
approx.
0.67 cu mBaggage Volume
(max)
(max)
1082 kmRange
depending on weight and weather
depending on weight and weather
Cirrus Vision SF50
Specifications
Manufacturer
| Manufacturer | Cirrus |
| Production Years | 2016 - Present |
Powerplant
| Engine Manufacturer | Williams |
| Engine Model | FJ33-5A |
| Engine Quantity | 1 Engine |
| Thrust | 837 kg |
Exterior
| Wingspan | 11.58 m |
| Fuselage | 9.37 m |
Interior
| Number of Passengers (Pax) | 3 Passengers |
| Cabin Width | 1.55 m |
| Cabin Length | 3.50 m |
| Cabin Height | 1.24 m |
| Total Cabin Volume | 4.81 cu m |
| Total Baggage Volume | 0.67 cu m |
Speed
| Normal Cruise Speed | 517 kph |
| Long-Range Cruise Speed | 420 kph |
| Maximum Cruise Speed | 572 kph |
Range Map
| Optimum Cruise Range | 1082 km |
| Maximum Cruise Range | 957 km |
| Seats Full Range | 1389 km |
| Ferry Range | 2191 km |
Weight
| Ramp Weight | 2740 kg |
| Max Gross Takeoff Weight | 2722 kg |
| Azami İniş Ağırlığı | 2517 kg |
| Max Landing Weight | 929 kg |
| Usable Fuel Weight | 899 kg |
Powerplant
| Engine Manufacturer | Williams |
| Engine Model | FJ33-5A |
| Engine Quantity | 1 Engine |
| Thrust | 1846 lb |
Exterior
| Wingspan | 38 ft |
| Fuselage | 30.75 ft |
Interior
| Number of Passengers (Pax) | 3 Yolcu |
| Cabin Width | 5.08 ft |
| Cabin Length | 11.48 ft |
| Cabin Height | 4.07 ft |
| Total Cabin Volume | 170 cu ft |
| Total Baggage Volume | 23.5 cu ft |
Speed
| Normal Cruise Range | 279 kts |
| Long-Range Cruise Speed | 227 kts |
| Maximum Cruise Speed | 309 kts |
Range Map
| Optimum Cruise Range | 584 nm |
| Maximum Cruise Range | 517 nm |
| Seats Full Range | 750 nm |
| Ferry Range | 1183 nm |
Weight
| Ramp Weight | 6040 lb |
| Max Gross Takeoff Weight | 6000 lb |
| Max Landing Weight | 5550 lb |
| Usaful Fuel Weight | 2047 lb |
| Usable Fuel Weight | 1983 lb |
Cabin Layout
Cirrus Vision SF50
Range Map
Cirrus Vision SF50 range maps will be here very shortly.For detailed information about Cirrus Vision SF50, please contact us.
