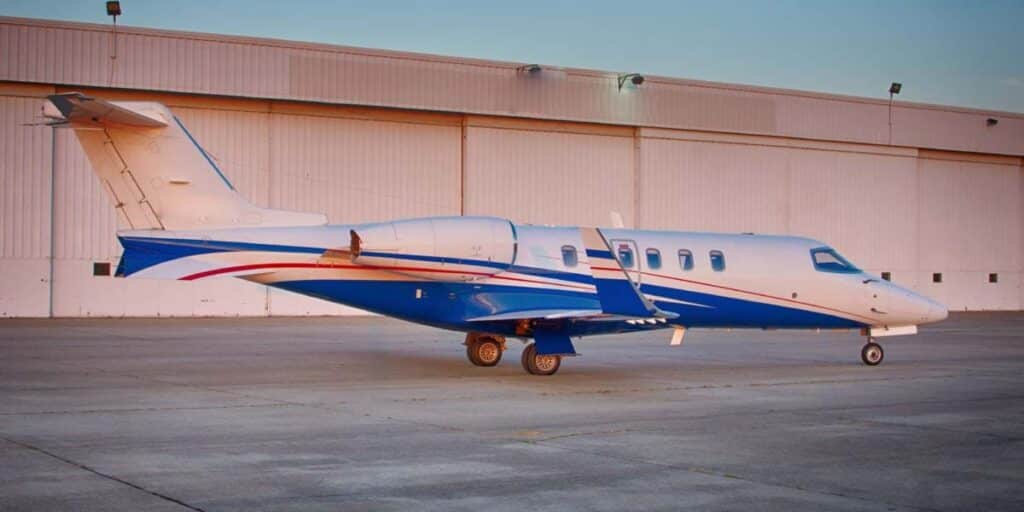

Bombardier Learjet 40XR
Designed for maximum speed, comfort and high efficiency, Bombardier Learjet 40XR offers a unique private flight experience.
6 PAXPassengers
approx.
approx.
1.50 mCabin Height
approx.
approx.
1.84 cu mBaggage Volume
(max)
(max)
2965 kmRange
depending on weight and weather
depending on weight and weather
Bombardier Learjet 40XR
Specifications
Manufacturer
| Manufacturer | Bombardier |
| Production Years | 2004 - 2012 |
Powerplant
| Engine Manufacturer | Honeywell Engines |
| Engine Model | TFE 731-20BR-1B |
| Engine Quantity | 2 Engines |
| Thrust | 1588 kg |
Exterior
| Wingspan | 14.57 m |
| Fuselage | 16.92 m |
Interior
| Number of Passengers (Pax) | 6 Passengers |
| Cabin Width | 1.56 m |
| Cabin Length | 5.39 m |
| Cabin Height | 1.50 m |
| Total Cabin Volume | 10.45 cu m |
| Total Baggage Volume | 1.84 cu m |
Speed
| Normal Cruise Speed | 807 kph |
| Long-Range Cruise Speed | 800 kph |
| Maximum Cruise Speed | 861 kph |
Range Map
| Optimum Cruise Range | 2965 km |
| Maximum Cruise Range | 2767 km |
| Seats Full Range | 3293 km |
| Ferry Range | 3630 km |
Weight
| Ramp Weight | 9639 kg |
| Max Gross Takeoff Weight | 9526 kg |
| Azami İniş Ağırlığı | 8709 kg |
| Max Landing Weight | 3312 kg |
| Usable Fuel Weight | 2750 kg |
Powerplant
| Engine Manufacturer | Honeywell Engines |
| Engine Model | TFE 731-20BR-1B |
| Engine Quantity | 2 Engines |
| Thrust | 3500 lb |
Exterior
| Wingspan | 47.8 ft |
| Fuselage | 55.5 ft |
Interior
| Number of Passengers (Pax) | 6 Yolcu |
| Cabin Width | 5.12 ft |
| Cabin Length | 17.67 ft |
| Cabin Height | 4.92 ft |
| Total Cabin Volume | 369 cu ft |
| Total Baggage Volume | 65 cu ft |
Speed
| Normal Cruise Range | 436 kts |
| Long-Range Cruise Speed | 432 kts |
| Maximum Cruise Speed | 465 kts |
Range Map
| Optimum Cruise Range | 1601 nm |
| Maximum Cruise Range | 1494 nm |
| Seats Full Range | 1778 nm |
| Ferry Range | 1960 nm |
Weight
| Ramp Weight | 21250 lb |
| Max Gross Takeoff Weight | 21000 lb |
| Max Landing Weight | 19200 lb |
| Usaful Fuel Weight | 7301 lb |
| Usable Fuel Weight | 6062 lb |
Cabin Layout
Bombardier Learjet 40XR
Range Map
Bombardier Learjet 40XR range maps will be here very shortly.For detailed information about Bombardier Learjet 40XR, please contact us.
